Eclipse Fixed Surface Mounted

A round wall surface-mounted luminaire creating a diffused and discrete light through the fixture perimeter on the wall. Fixture for outdoor installation on a wall. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, frosted polycarbonate diffuser, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with low-power CREE LED. IP65 rating.

Inputs

Outputs

Optic
Polycarbonate Diffuser
System Lumen
446lm
System Efficacy
50lm/W
CRI
CRI80
Voltage
240V
LED Module
CREE
LED Driver
Integral
Installation Method
Fixed Surface Mounted
Lifetime
50000hrs
Dimensions
Ø186mmx33.5mm
IP Rating
IP65
Warranty
5 Years
Add-Ons
IK08 Rated
Outdoor

Eclipse

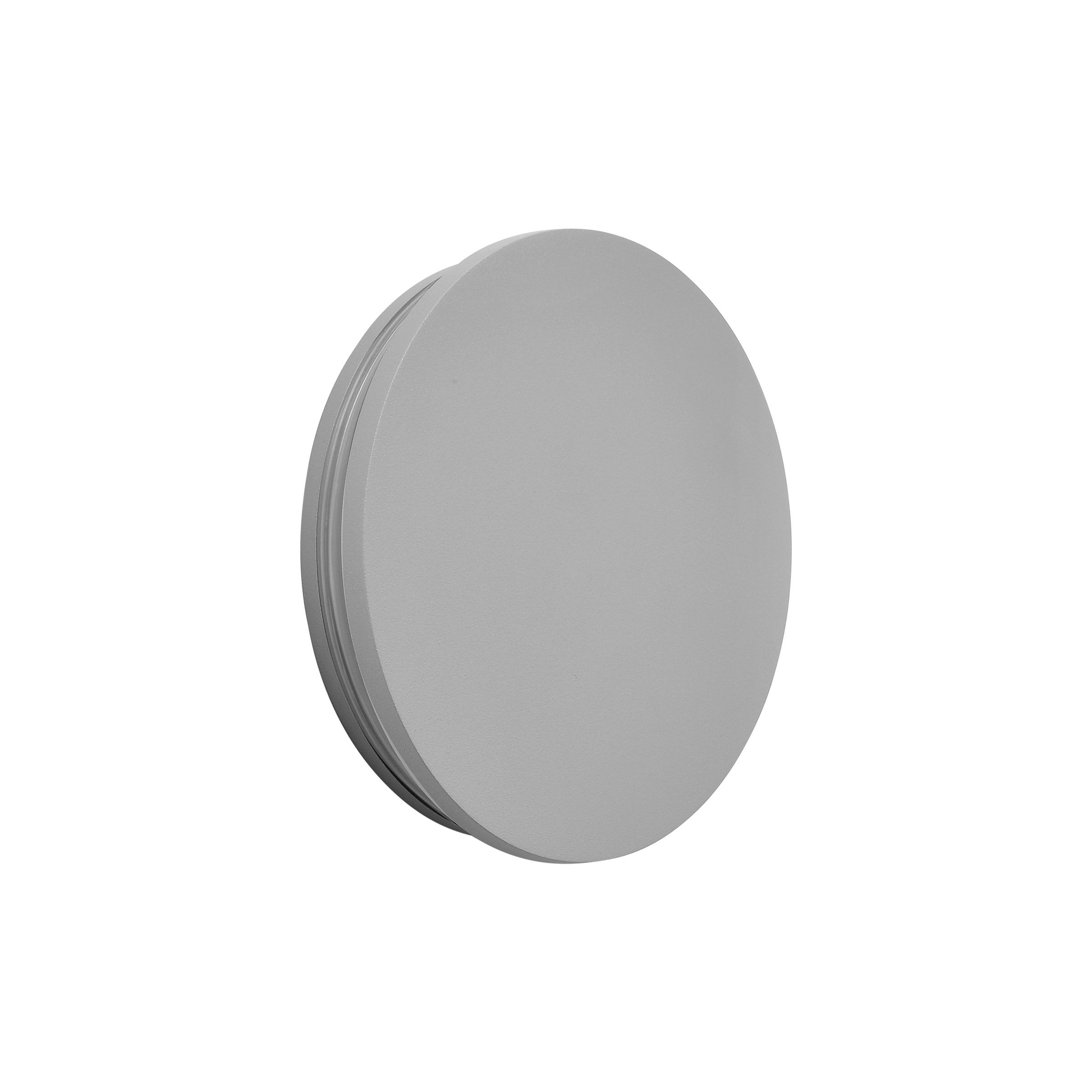

Textured Grey Finish

Outdoor

Eclipse

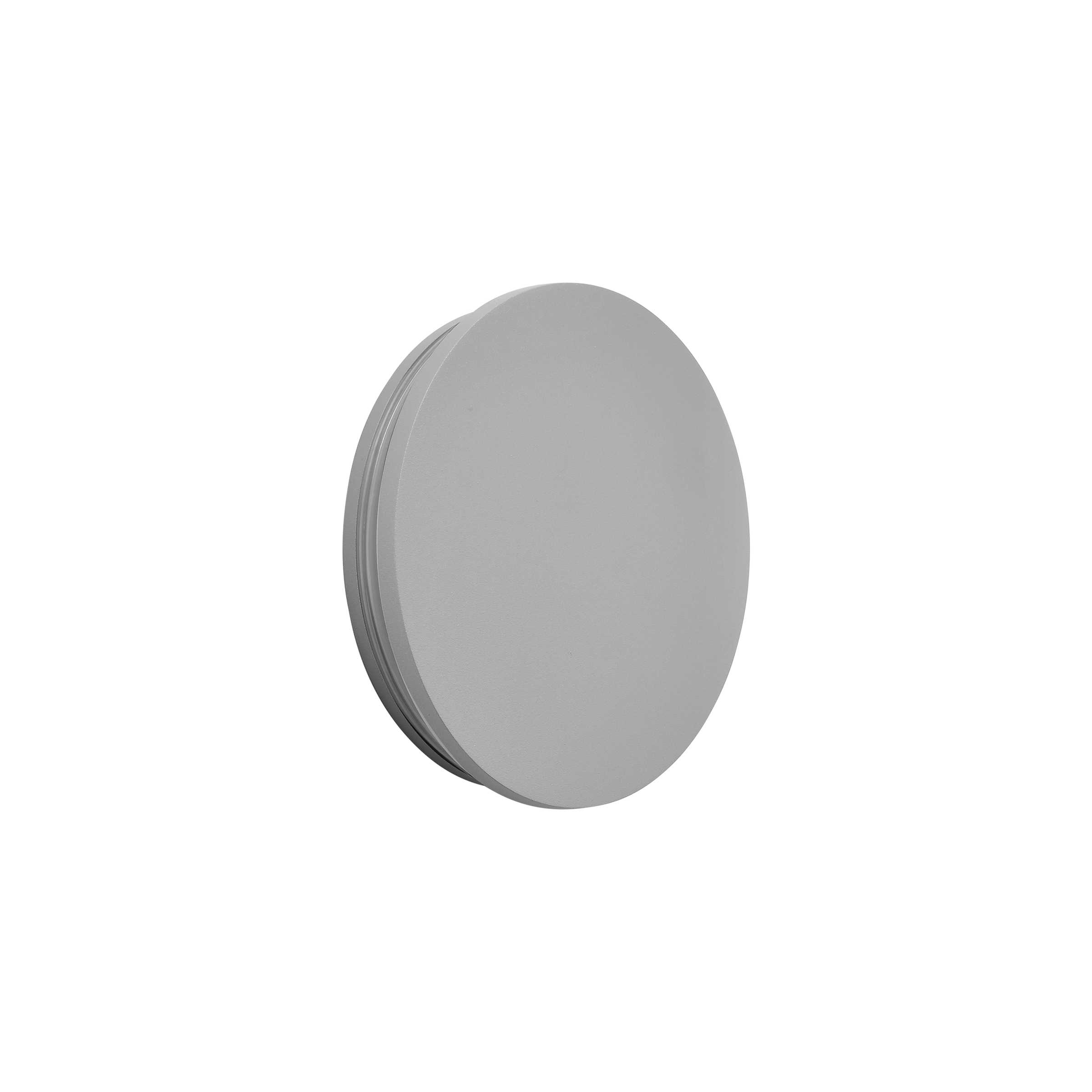

Available in Extra Small and Small.
