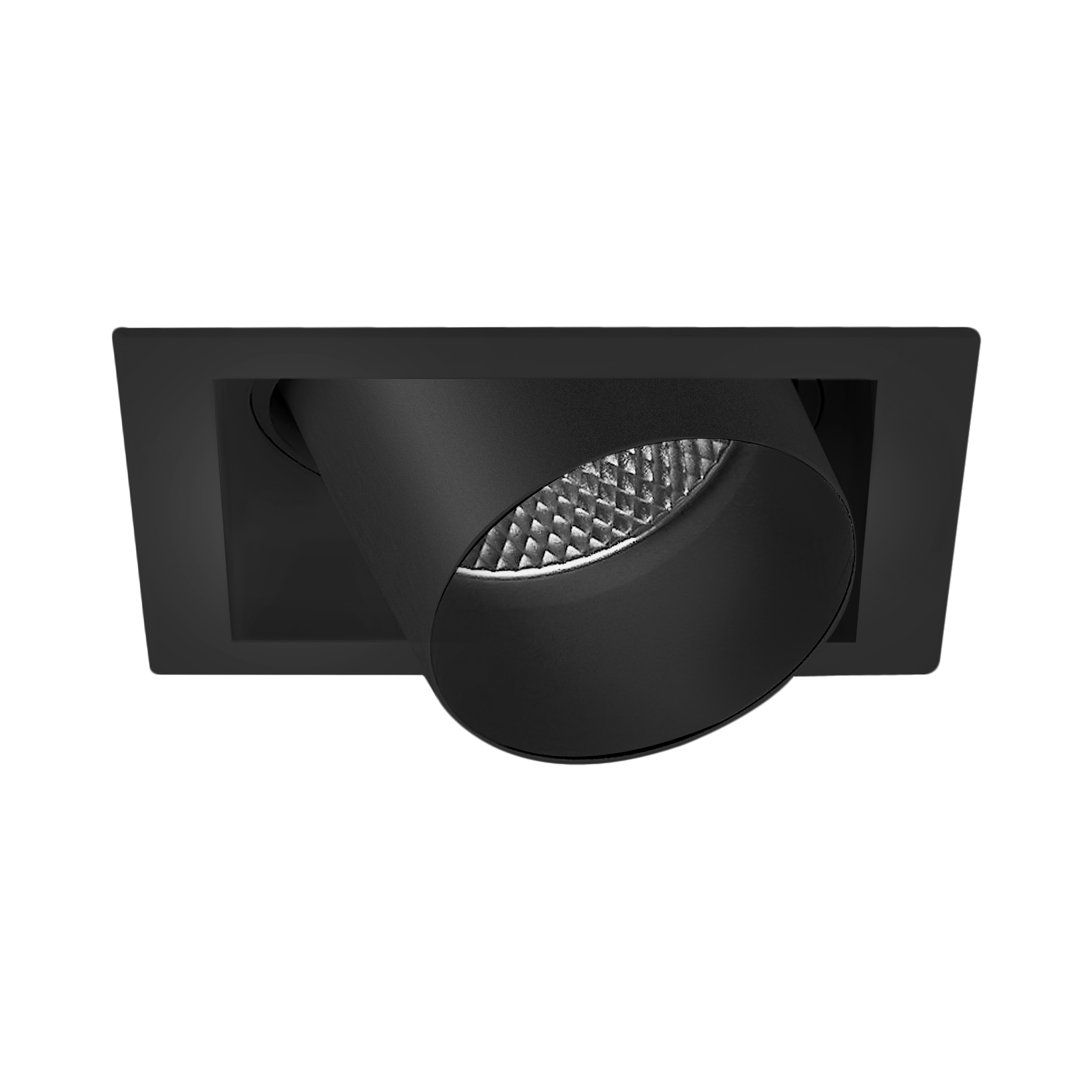

Flux Square Adjustable Recessed

Move It

Inspired by fluid movement, the Flux series is the sister of our Flow range. This fitting has a sleek, stylised and European look, with one of the major design features is the engineering to create no visible light source from the normal viewing angle. The heads are adjustable and the Flux family offers an answer to a diverse range of applications.

Inputs

Outputs

Optic
Reflector
System Lumen
1656lm
System Efficacy
83lm/W
LOR
70
CRI
CRI90
Voltage
240V
Forward Current
500mA
LED Module
Standard Tridonic SLE G7
LED Driver
Remote
Installation Method
Adjustable Recessed
Lifetime
50000hrs
SDCM
3 SDCM
Dimensions
140mmx140mmx172mm
Tilt Angle
24°
IP Rating
IP20
Warranty
3 Years
Cutout Size
130mmx130mm
Flux

Square Adjustable Recessed

Available in Extra Small and Small.
