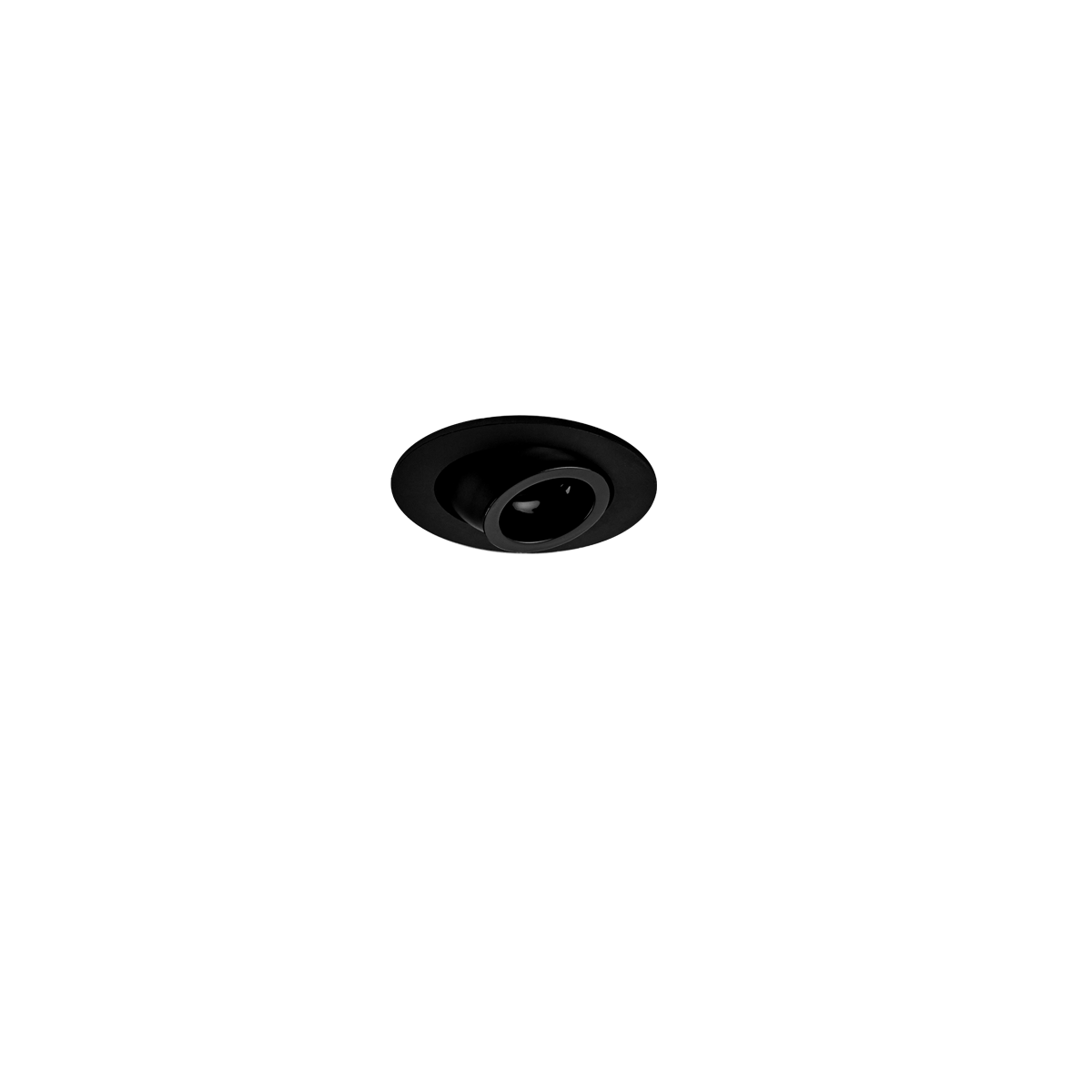

Diorama Adjustable Recessed

In stock
Micro Lights. Major Output.

These are the micro luminaires that give plenty. The adjustable head on Diorama makes it ideal for unobtrusive and tight applications like jewellery cases, museum displays and interior step lighting. So, if you’re looking for a high output, yet compact luminaire with varying beam angles and colour temperatures, then these micros lights are a major victory.

Inputs

Outputs

Optic
Lens
System Lumen
150lm
LOR
80
CRI
CRI90
Voltage
3V (Vf)
Forward Current
max. 700mA
LED Module
CREE
LED Driver
Remote
Installation Method
Adjustable Recessed
Lifetime
50000hrs
SDCM
3 SDCM

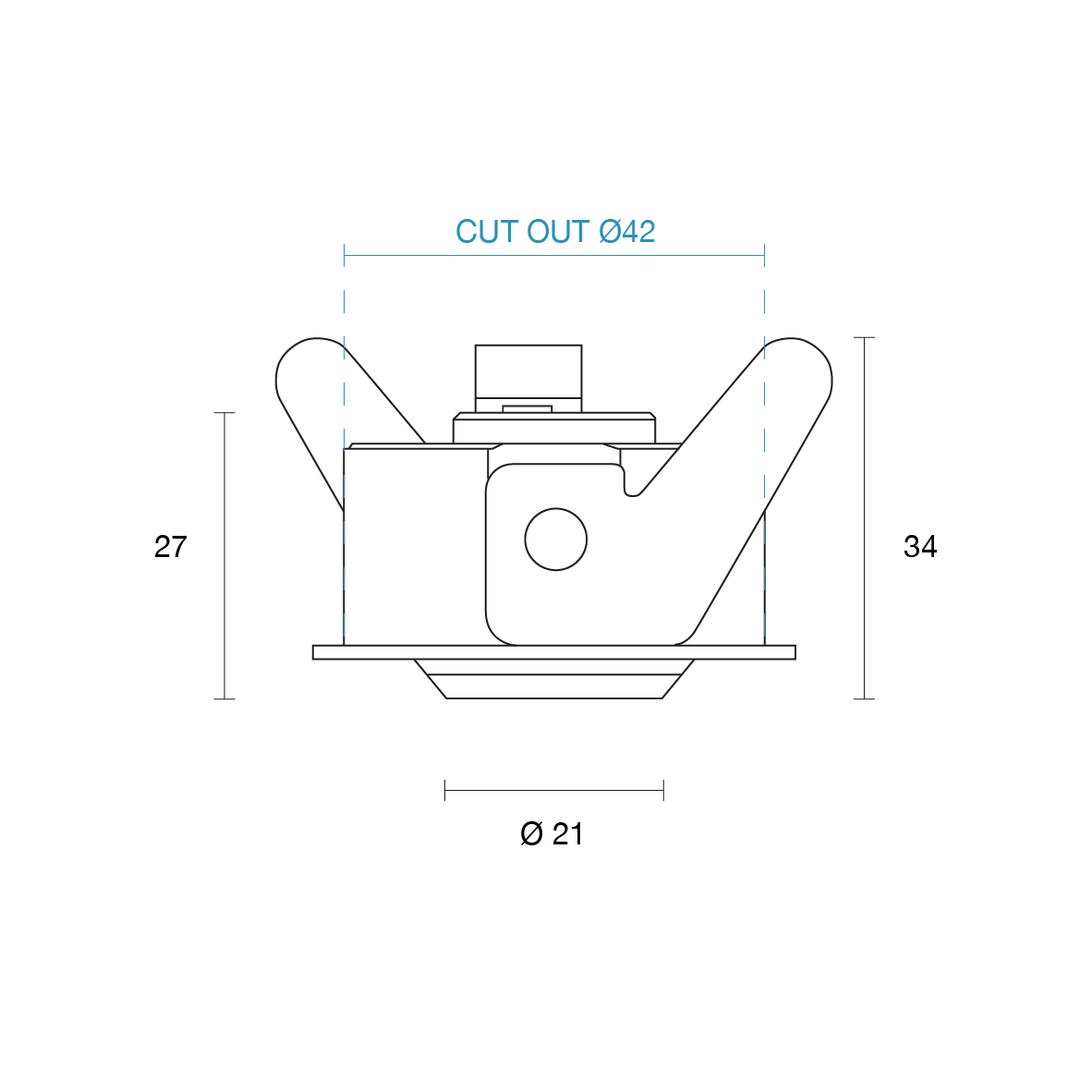

Dimensions
Ø46mmx34mm
Rotate Angle
360°
Tilt Angle
30°
IP Rating
IP20
Warranty
3 Years
Cutout Size
Ø42mm
